Acoustic Wall Panel - Yellow Oak PM1-14
Architectural interior wall panelling with MDF slats and recycled PET felt backing.
A vertical slat panel system featuring a Yellow Oak PVC finish designed for interior wall and ceiling applications. The construction combines 27 mm wide MDF slats with a 9 mm black polyester felt substrate.
Available colours
- Warranty
- 12 years
- Origin
- China
Overview
The reasoning behind the spec.
The PM1-14 series provides a structured architectural aesthetic through slim vertical slats and a contrasting black background. Each panel measures 2800 mm in height to accommodate standard ceiling clearances, offering a continuous visual line with minimal horizontal joins. The three-sided PVC wrap ensures colour consistency across the visible faces of the timber-look slats. Engineered for indoor environments, the panel utilises a 9 mm PET felt backing to provide sound dampening qualities. The lightweight construction allows for efficient handling and installation on a variety of substrate types, including plasterboard and timber framing.
What sets it apart
Engineered details.
Three-Sided Facing
The PVC Yellow Oak finish is applied to the front and both side edges of each slat for a seamless appearance from multiple viewing angles.
PET Felt Substrate
A 9 mm black recycled polyester felt backing provides a stable base and contributes to the reduction of sound reflections.
Slim Profile Slats
Uniform 27 mm wide MDF slats create a precise, repetitive rhythm suitable for modern commercial and residential interiors.
Full Height Format
The 2800 mm length is designed to cover most floor-to-ceiling spans in a single piece, reducing wastage and visible seams.
Performance
Tested. Rated. Documented.
Every metric below is independently verified. Full test reports and BAL compliance pathways are available with the technical data sheet.
Technical Specification
- Product Code
- TR/ACU-WP-003
- EAN
- 2001700000039
- Panel Dimensions
- 2800 mm x 600 mm x 21 mm
- Slat Dimensions
- 27 mm (w) x 12 mm (t)
- Felt Thickness
- 9 mm
- Weight
- 1.5–2.0 kg/m²
- Slat Material
- MDF with PVC Finish
- Backing Material
- Black PET Felt
- EAN Number
- 2001700000039
Warranty
10 years residential and 5 years commercial warranty covering manufacturer defects.
Lead time
Ex-stock subject to availability; or 8 to 12 weeks for project orders.
Origin
China
Certifications

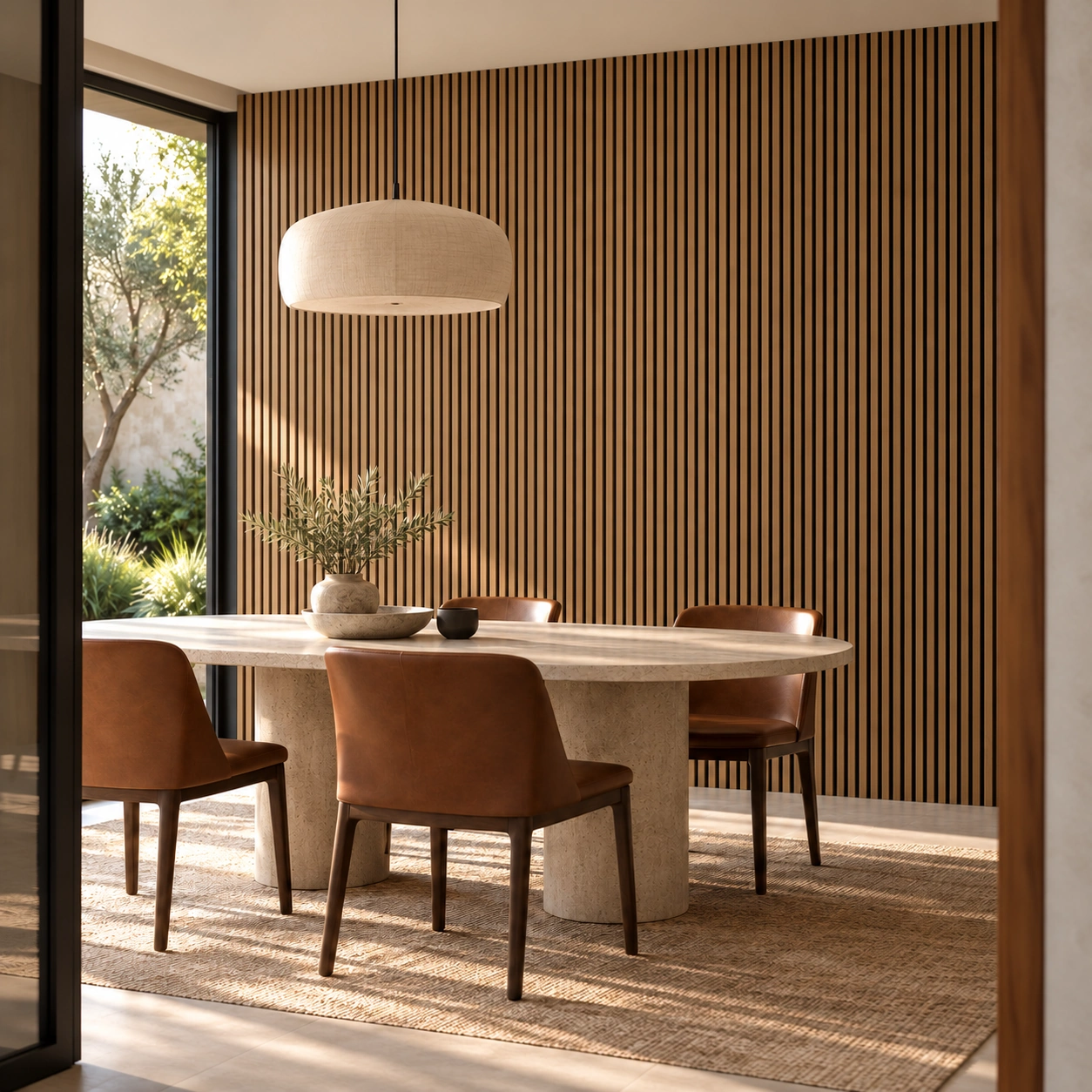

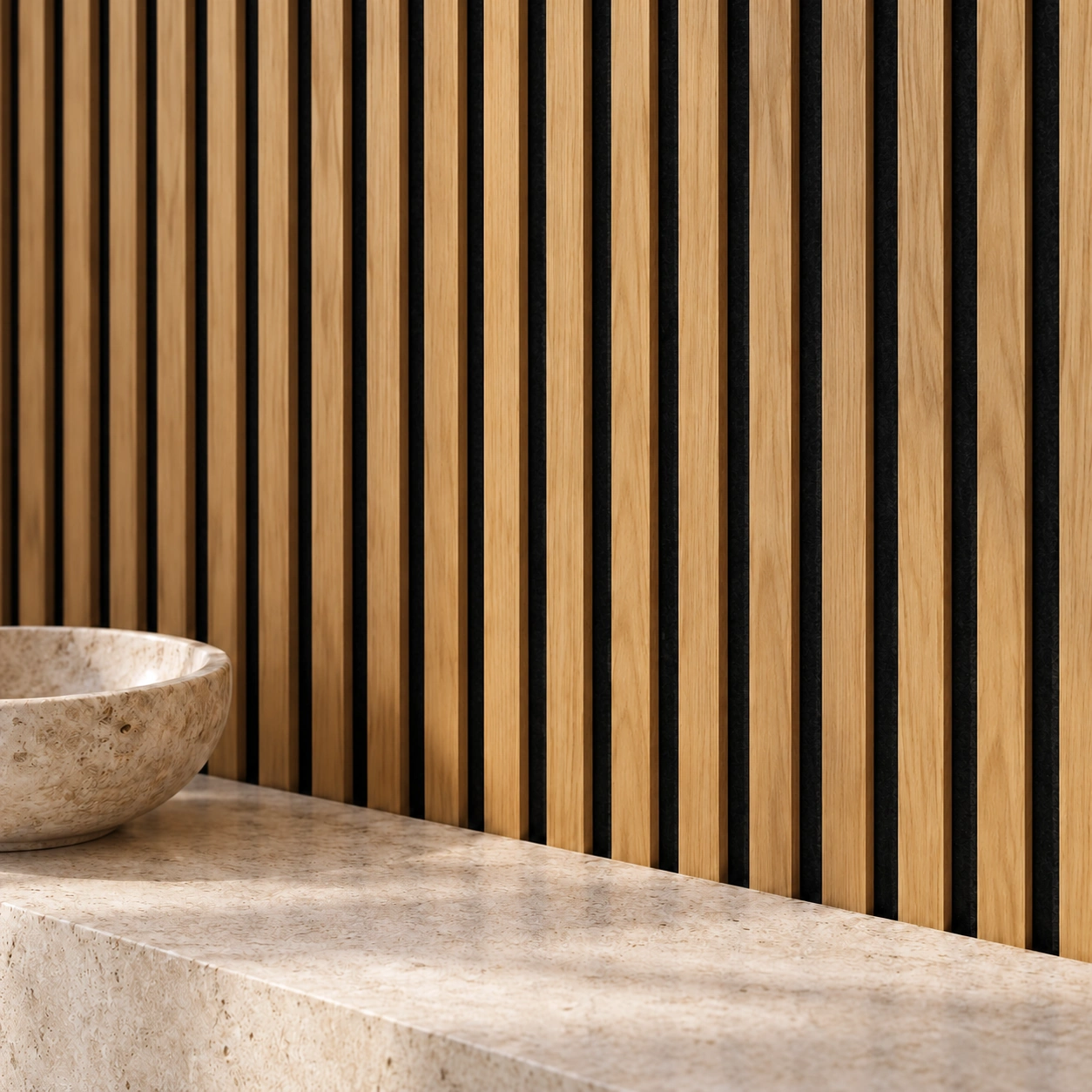

Gallery
See it in real spaces.
A closer look at the texture, tone, and finish of this profile across real applications.
Finishes
1 factory finishes.
Custom colour matching available on project quantities of 80sqm and above. All finishes are low VOC and certified for indoor air quality.
Yellow Oak PM1-14
A warm, natural oak timber grain finish with a smooth PVC protective layer.
Installation
Detailed for the people who build.
Every order ships with our installation guide, fixing schedule and toolbox talk pack. Site visits available on request across the eastern seaboard.
Book a Site Walk- 01
Surface Preparation
Ensure the wall or ceiling substrate is flat, dry, and free of dust or debris.
- 02
Adhesive Application
Apply a high-strength construction adhesive to the back of the PET felt or prepare for mechanical fixing.
- 03
Panel Alignment
Position the first panel using a spirit level to ensure vertical accuracy, then press firmly against the substrate.
- 04
Mechanical Fastening
For additional security, drive screws through the black felt between the slats directly into studs or the wall surface.
Typical applications
Where it performs.
Specified across these typologies by Australian architects and developers.
The comparison
How Acoustic Wall Panel - Yellow Oak PM1-14 measures up.
A direct, like-for-like specification read against the typical alternatives on the Australian market.
Teak & Rope
Specification- 2800 mm height for floor-to-ceiling coverage
- High-density 9 mm PET felt backing
- Three-sided finish on every slat
Typical alternatives
Market- Standard 2400 mm lengths requiring joins
- Thinner 6 mm felt backing
- Single-face top finish only
Why it matters
A premium interior solution focusing on ease of installation and visual consistency.
FAQs
The questions we hear most.
Specify Acoustic Wall Panel - Yellow Oak PM1-14 on your next project.
Order an A4 sample pack, request a project quote, or arrange a meeting with our specification team.
