Indoor Acoustic Panels
Available now
Mosaic Acoustic Wall Panel - Walnut 80910-9
A modular acoustic solution featuring a raised walnut basket-weave architectural pattern.
The Mosaic Walnut panel combines 15mm MDF geometry with a 5mm PET felt backing to provide tactile depth and sound diffusion for interior walls. This 600mm square format facilitates efficient installation and creative geometric configurations.
- Warranty
- 12 years
- Origin
- China
Overview
The reasoning behind the spec.
The Mosaic Acoustic Wall Panel in Walnut is designed for internal vertical applications where visual texture and sound management are required. The panel features a refined basket-weave pattern constructed from 15mm thick MDF with three-sided walnut facing. This assembly is mounted to a 5mm PET felt backing, resulting in a lightweight modular unit that is easy to handle and install. While designed to assist with internal sound diffusion and dampening, please note that this specific product has not undergone independent acoustic or fire testing. Specification for projects requiring certified NRC or fire-rating compliance should be verified by a qualified consultant. The product offers a disciplined aesthetic suited to residential and commercial interiors seeking timber-look architectural detailing.
What sets it apart
Engineered details.
Architectural Geometry
A raised basket-weave pattern provides significant tactile depth and visual interest compared to traditional flat acoustic treatments.
Premium Construction
Comprised of 15mm thick MDF with three-sided walnut facing for a consistent and high-quality finish across visible surfaces.
Integrated Backing
Fixed to a 5mm PET felt layer which provides structural support and serves as a functional acoustic buffer.
Lightweight Format
Weighing between 1.5 and 2.0 kg per square metre, these panels allow for simple mounting without significant structural reinforcement.
Performance
Tested. Rated. Documented.
Every metric below is independently verified. Full test reports and BAL compliance pathways are available with the technical data sheet.
Technical Specification
- Product Code
- TR/ACU-WP-006
- EAN Number
- 2001700000060
- Dimensions
- 600mm × 600mm
- Total Thickness
- 20mm
- MDF Thickness
- 15mm
- PET Backing Thickness
- 5mm
- Weight
- 1.5–2.0 kg/m² (supplier statement)
- Finish
- Three-sided walnut facing
Warranty
10 years residential / 5 years commercial, covering manufacturer defects only
Lead time
Origin
China
Certifications

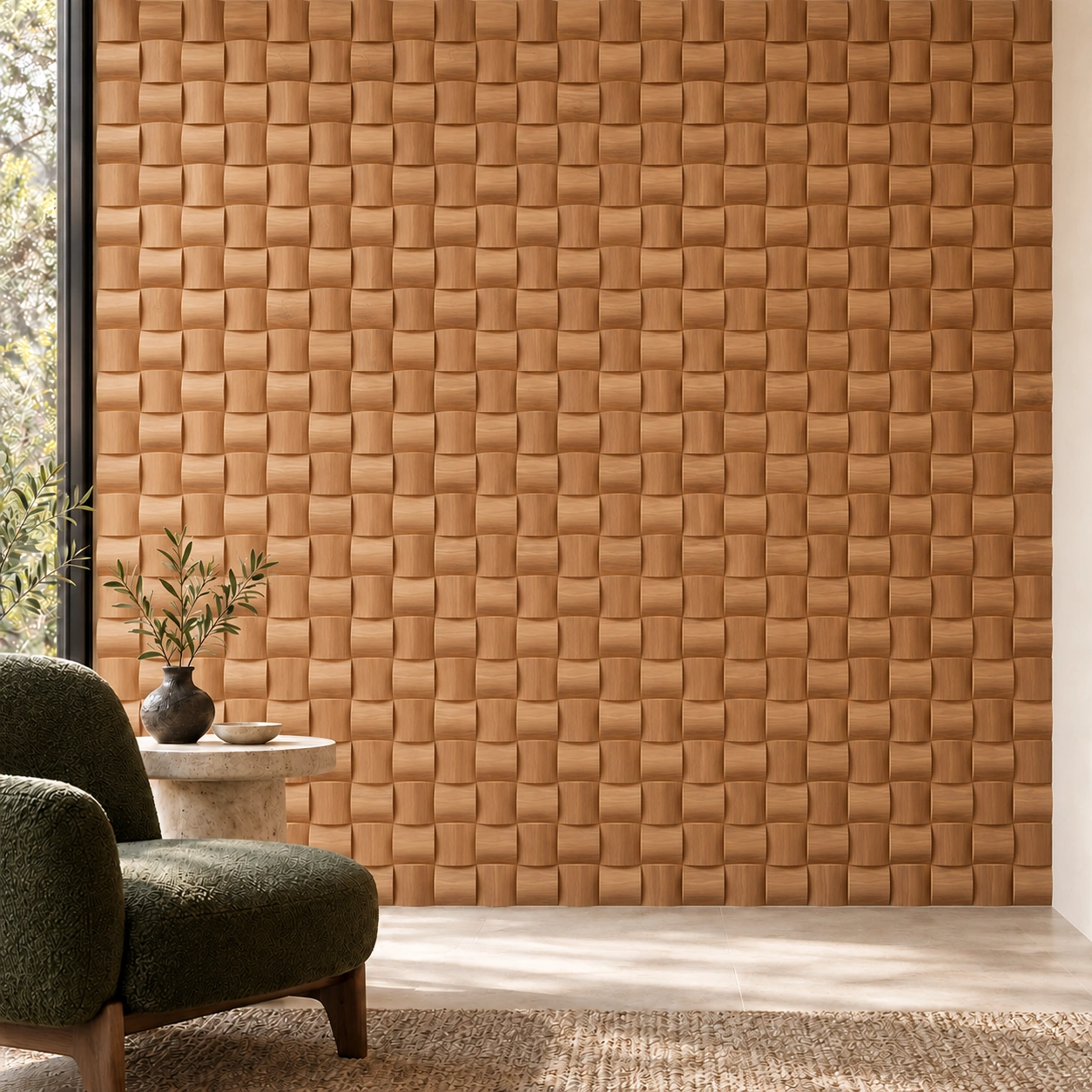

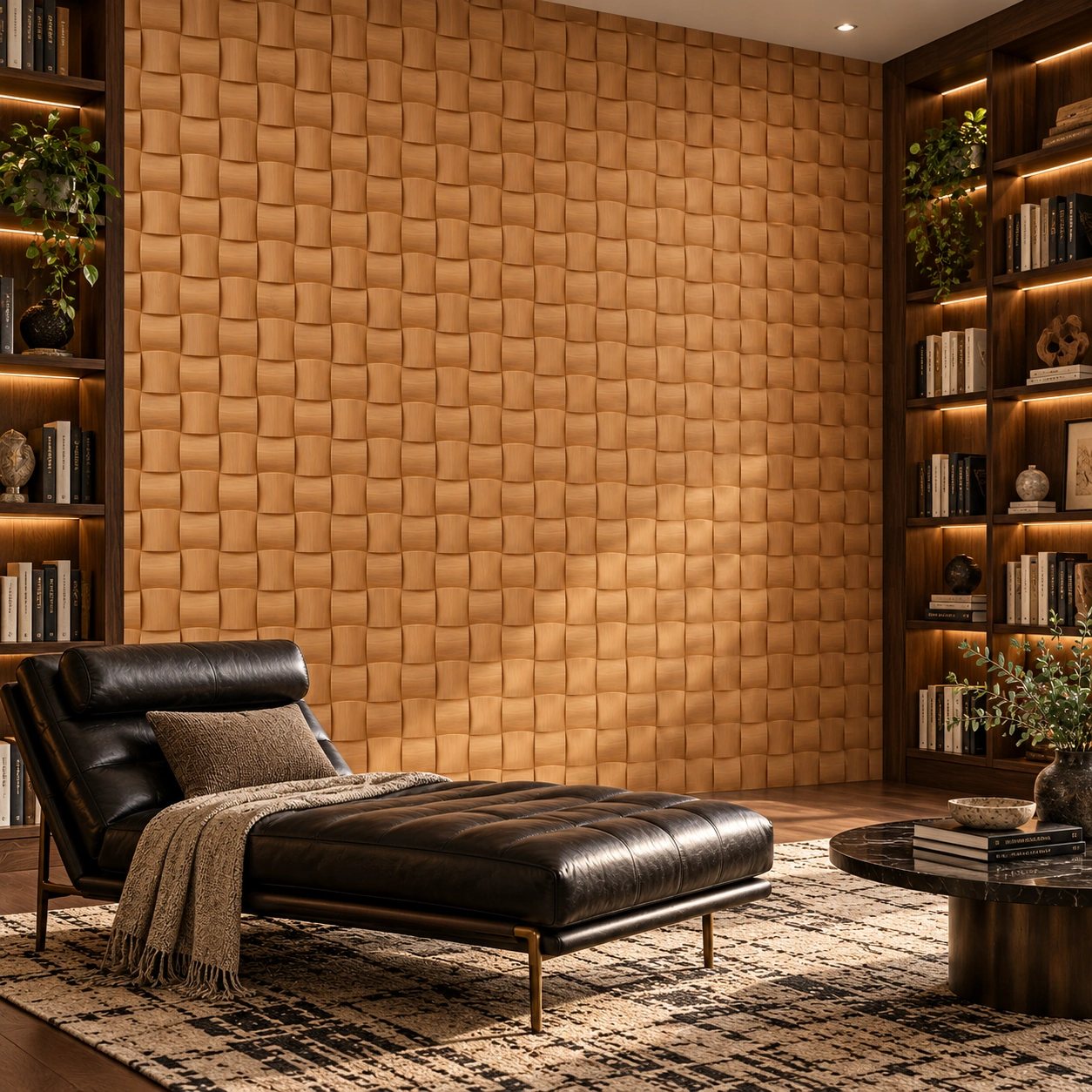

Gallery
See it in real spaces.
A closer look at the texture, tone, and finish of this profile across real applications.
Finishes
0 factory finishes.
Custom colour matching available on project quantities of 80sqm and above. All finishes are low VOC and certified for indoor air quality.
Installation
Detailed for the people who build.
Every order ships with our installation guide, fixing schedule and toolbox talk pack. Site visits available on request across the eastern seaboard.
Book a Site Walk- 01
Substrate Preparation
Ensure the wall surface is clean, dry, and structurally sound. Remove any significant obstructions that may prevent the panel from sitting flush.
- 02
Layout and Alignment
Plan the grid layout across the wall. Use a spirit level to ensure the first row of 600mm panels is perfectly horizontal.
- 03
Fixing Method
Panels can be secured using high-strength construction adhesive or fine-thread screws driven through the PET felt backing into the substrate.
- 04
Panel Joining
Butt panels tightly against one another to maintain the continuity of the basket-weave pattern across the installation area.
Typical applications
Where it performs.
Specified across these typologies by Australian architects and developers.
FAQs
The questions we hear most.
Specify Mosaic Acoustic Wall Panel - Walnut 80910-9 on your next project.
Order an A4 sample pack, request a project quote, or arrange a meeting with our specification team.
