Square Tile Acoustic Wall Panel - Walnut PM1-9
A geometric walnut timber finish acoustic solution for contemporary interiors.
The Walnut PM1-9 Square Tile features a precision-cut geometric pattern designed to enhance interior wall surfaces with textured depth. This panel combines 12 mm MDF slats with a 9 mm PET felt backing to provide visual interest and basic sound absorption.
Available colours
- Warranty
- 12 years
- Origin
- China
Overview
The reasoning behind the spec.
The Square Tile Acoustic Wall Panel offers a refined aesthetic for residential and commercial interiors. The Walnut PM1-9 finish provides the warmth of timber with the durability of a PVC colour finish, applied to three sides of each slat for a consistent look from multiple viewing angles. The geometric arrangement creates a distinct architectural pattern that differentiates it from traditional linear slat systems. Constructed with a dual-layer system, the 600 x 600 mm tiles are designed for efficient installation. Each tile consists of an MDF substrate mounted to a high-density PET felt base. While the materials are selected for their inherent sound-dampening qualities, please note that no independent acoustic or fire ratings have been verified for this specific product.
What sets it apart
Engineered details.
Geometric Walnut Design
The PM1-9 walnut finish is arranged in a geometric square pattern, providing a sophisticated alternative to standard linear cladding.
Precision Construction
Built with 12 mm MDF slats and a 9 mm PET felt backing for a total thickness of 21 mm.
Consistent Finish
Each slat is faced on three sides with a PVC colour finish to ensure no raw MDF is visible at standard viewing angles.
Modular Format
The 600 x 600 mm square format allows for versatile orientation and simplified layout planning on both small and large wall surfaces.
Performance
Tested. Rated. Documented.
Every metric below is independently verified. Full test reports and BAL compliance pathways are available with the technical data sheet.
Technical Specification
- Product Code
- TR/ACU-WP-017
- EAN
- 2001700000176
- Dimensions
- 600 mm × 600 mm
- Thickness
- 21 mm
- MDF Slat Thickness
- 12 mm
- PET Felt Thickness
- 9 mm
- Weight
- 1.5–2.0 kg/m² (Supplier statement, unverified)
- Finish
- PVC faced on three sides
- EAN Number
- 2001700000176
Warranty
10 years residential / 5 years commercial, covering manufacturer defects only
Lead time
Origin
China
Certifications

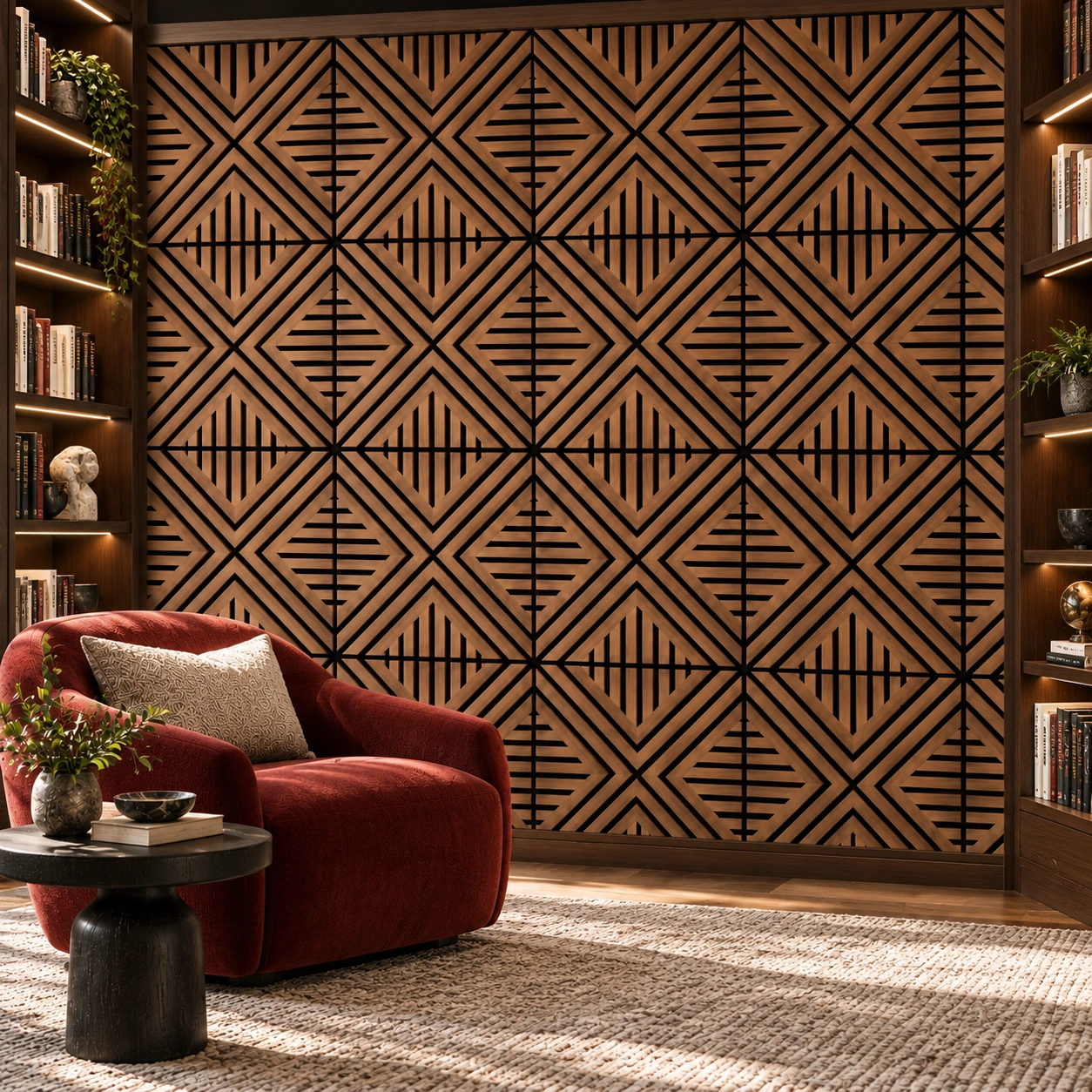

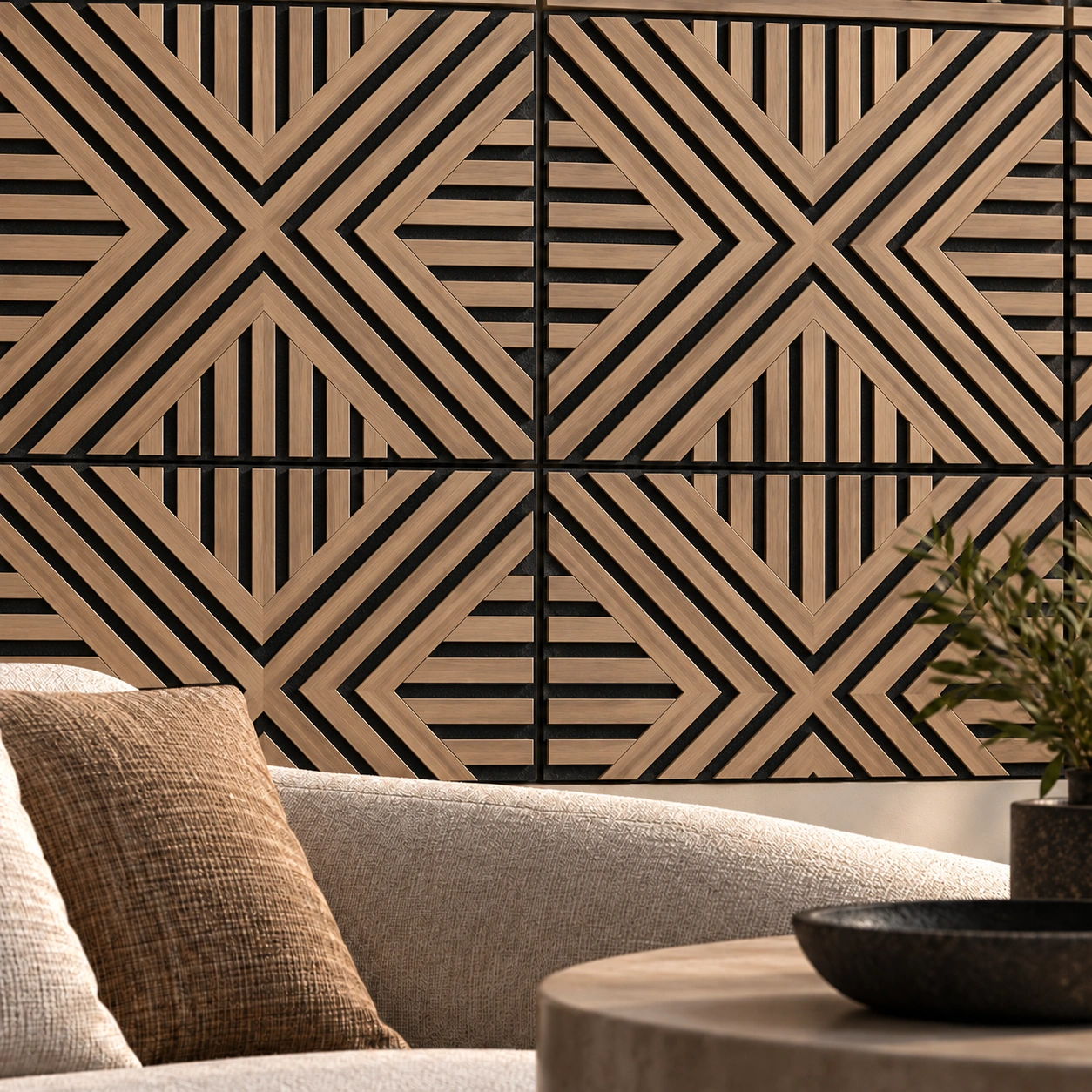

Gallery
See it in real spaces.
A closer look at the texture, tone, and finish of this profile across real applications.
Finishes
1 factory finishes.
Custom colour matching available on project quantities of 80sqm and above. All finishes are low VOC and certified for indoor air quality.
Walnut PM1-9
Installation
Detailed for the people who build.
Every order ships with our installation guide, fixing schedule and toolbox talk pack. Site visits available on request across the eastern seaboard.
Book a Site Walk- 01
Surface Preparation
Ensure the substrate is clean, dry, and structurally sound. Remove any significant protrusions that may prevent the panel from sitting flush.
- 02
Layout Planning
Measure the wall area and mark the centre point. Dry-lay the tiles to determine the best orientation and to plan any necessary cuts at the edges.
- 03
Fixing
Apply a high-quality construction adhesive to the back of the PET felt and secure the panel to the wall. For additional security, black screws can be driven through the felt between the slats.
Typical applications
Where it performs.
Specified across these typologies by Australian architects and developers.
FAQs
The questions we hear most.
Specify Square Tile Acoustic Wall Panel - Walnut PM1-9 on your next project.
Order an A4 sample pack, request a project quote, or arrange a meeting with our specification team.
